PHiscord is a Discord clone built as a desktop app using Next.js and Electron. This desktop app is complete with text, voice, and video communication with server-based communities and direct messaging.
This project was made to complete the technical test when I applied for the full-time role of Junior Laboratory Assistant at BINUS Software Laboratory Center (SLC). As a part-time laboratory assistant, this was one of my first big programming projects and a very valuable learning experience. The case was on the subject of Business Analysis and Application, which included creating the System Design and Architecture before development. I was tested by Shania Priccilia, former Resource Management Officer in BINUS SLC, and achieved a score of 92/100.
Tech Stack: Next.js (React), Electron (via Nextron), Firebase (Auth, Firestore, Storage, Realtime Database), LiveKit (Real-time Voice/Video), TypeScript, Tailwind CSS, Shadcn/UI.
Key Features
Core Communication

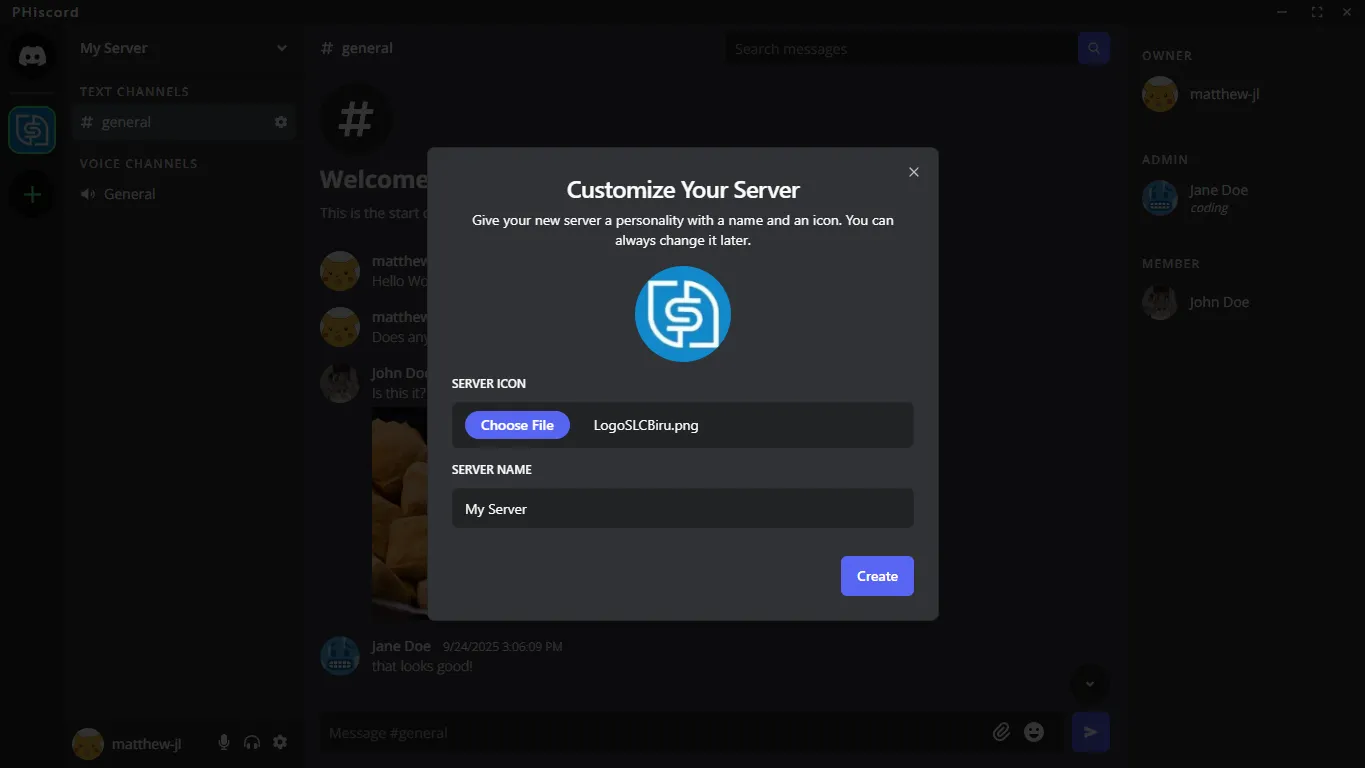

- Servers & Channels → Create or join servers (communities). Organize discussions within servers using distinct text and voice channels.
- Real-time Text Chat → Send and receive messages instantly in text channels and direct messages.

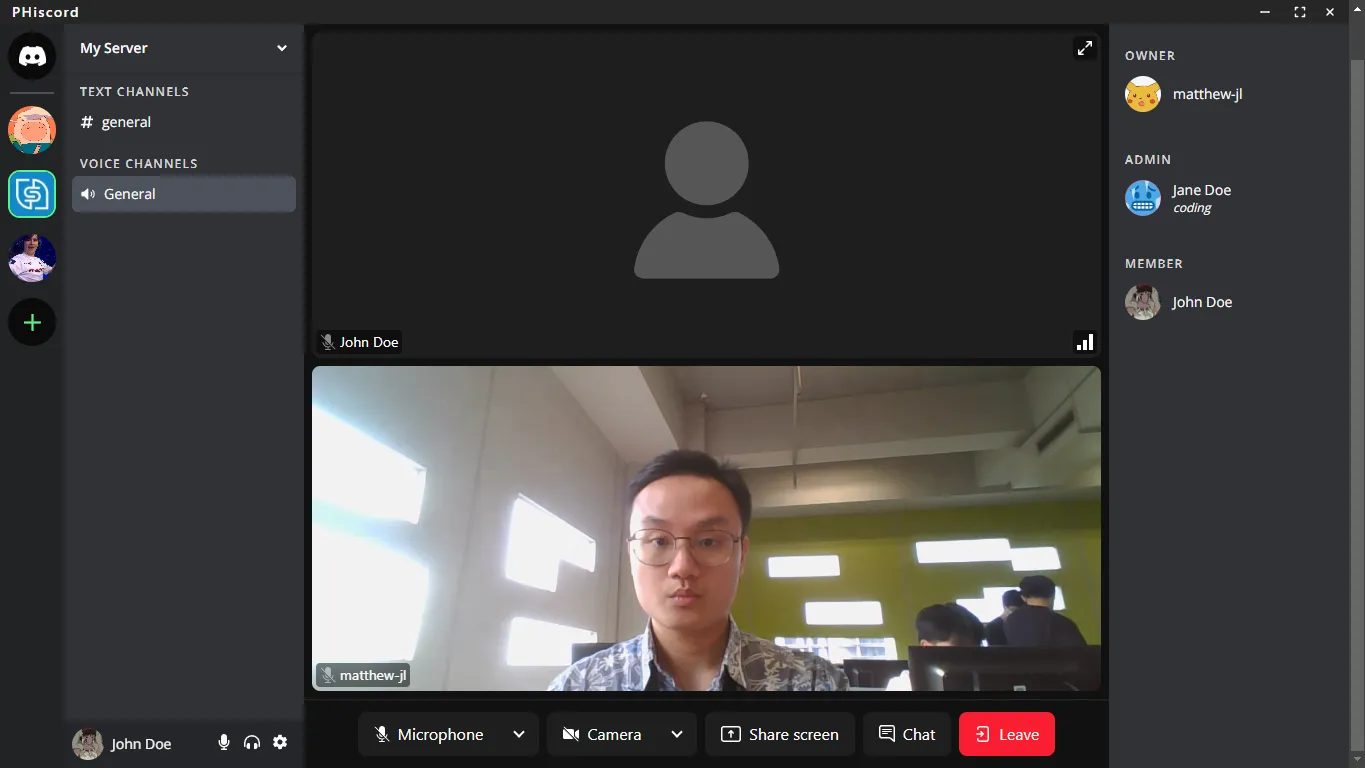

- Real-time Voice/Video Channels → Join voice channels for persistent group voice chat. Toggle camera for video sharing within the channel. See who’s currently speaking.

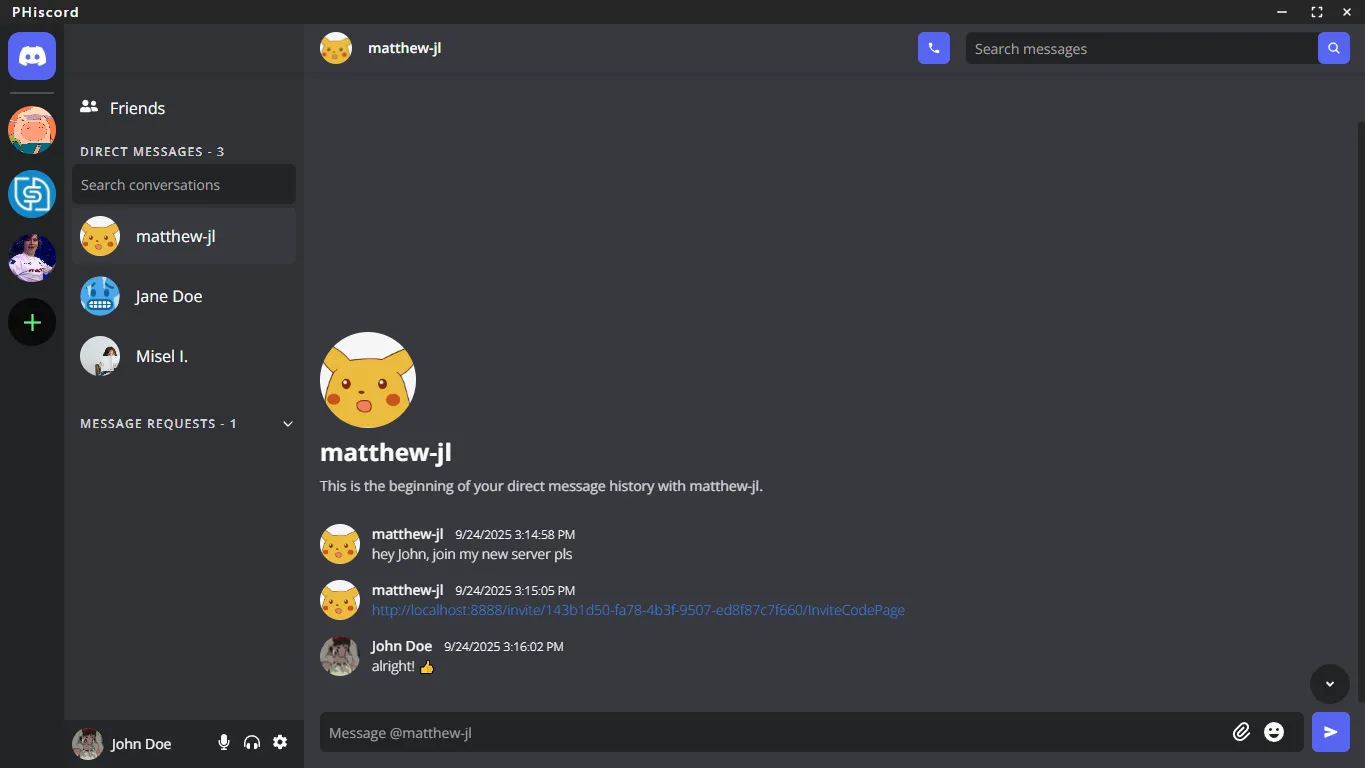

- Direct Messaging → Engage in private one-on-one conversations with friends or other server members (respecting privacy settings).
- Direct Voice/Video Calls → Initiate private voice or video calls directly with other users.
User Experience & Customization
- User Authentication → Secure registration and login flow using Firebase Authentication.

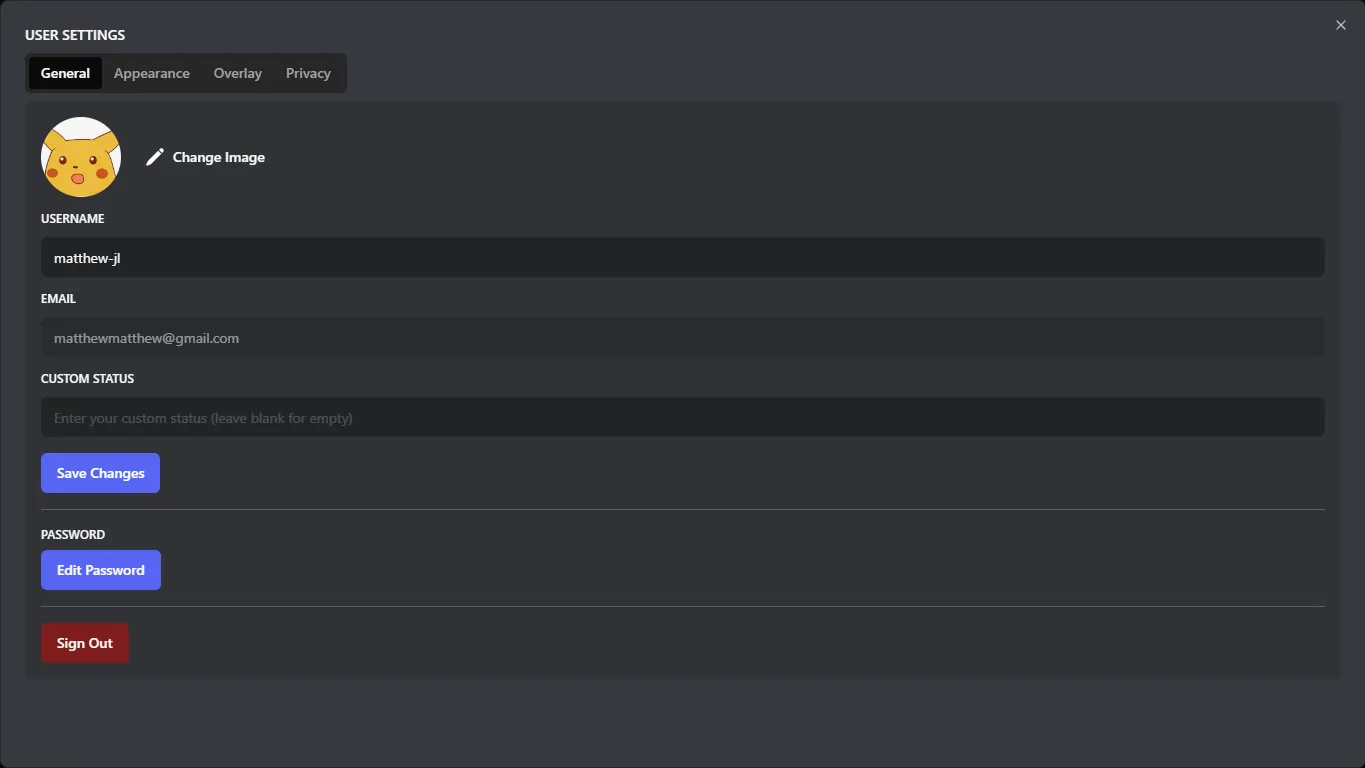

- User Profiles & Presence → Manage your profile information and see the online status of friends. Set custom statuses to share what you’re up to.

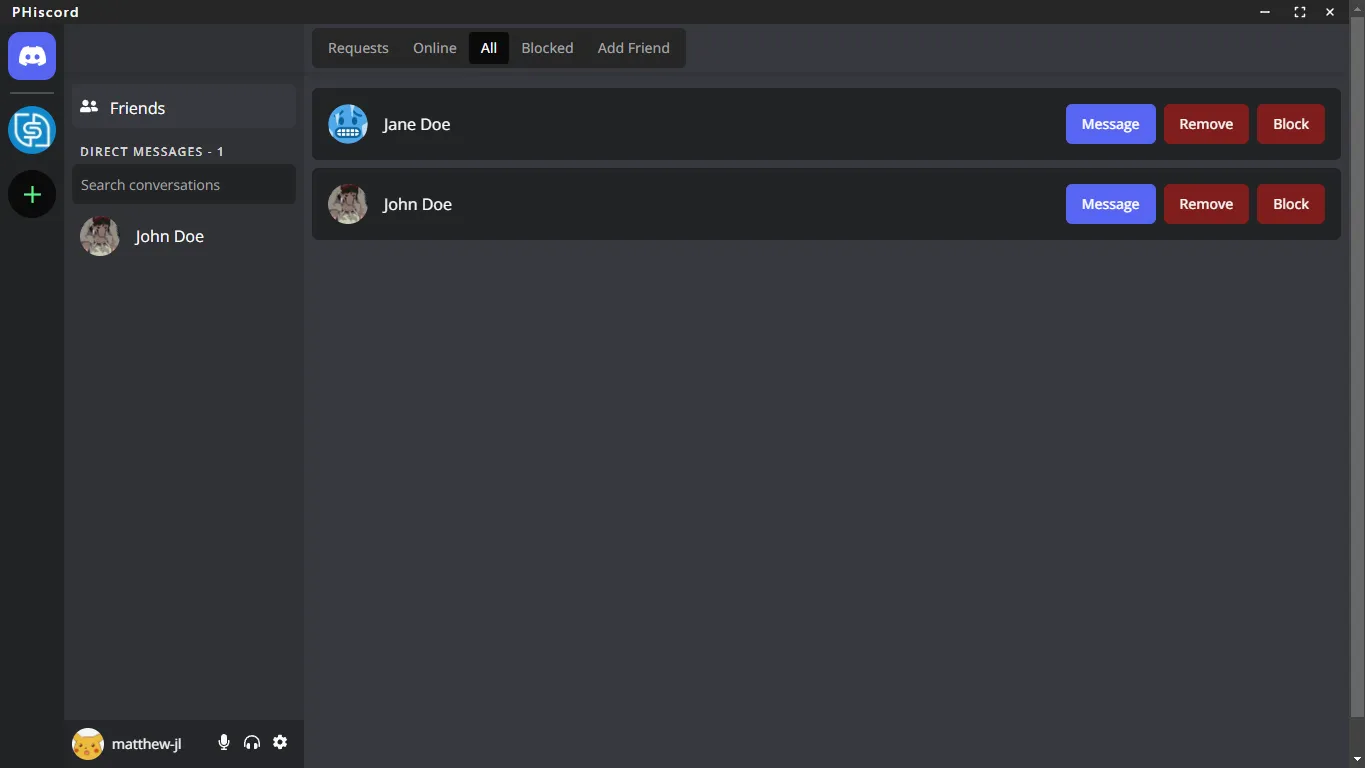

- Friend System → Add, view (by status: Online, All, Blocked), and remove friends. Block users to prevent unwanted interactions.
- Rich Media & Interactions:
- Send files (images, documents) via drag-and-drop or file selection.
- Use emojis in messages.
- Edit and delete your own messages.
- Mention users (
@username) to notify them. - Clickable links and image previews directly in chat.
- Message search within channels and DMs.
- Customization:
- Personalize appearance with color themes and adjustable font sizes.
- Configure privacy settings for direct messages and calls from non-friends.
- Set custom nicknames per server.
Server Management
- Role-Based Access Control → Servers have Owners, Admins, and Members with distinct permissions for managing the server, channels, and members.

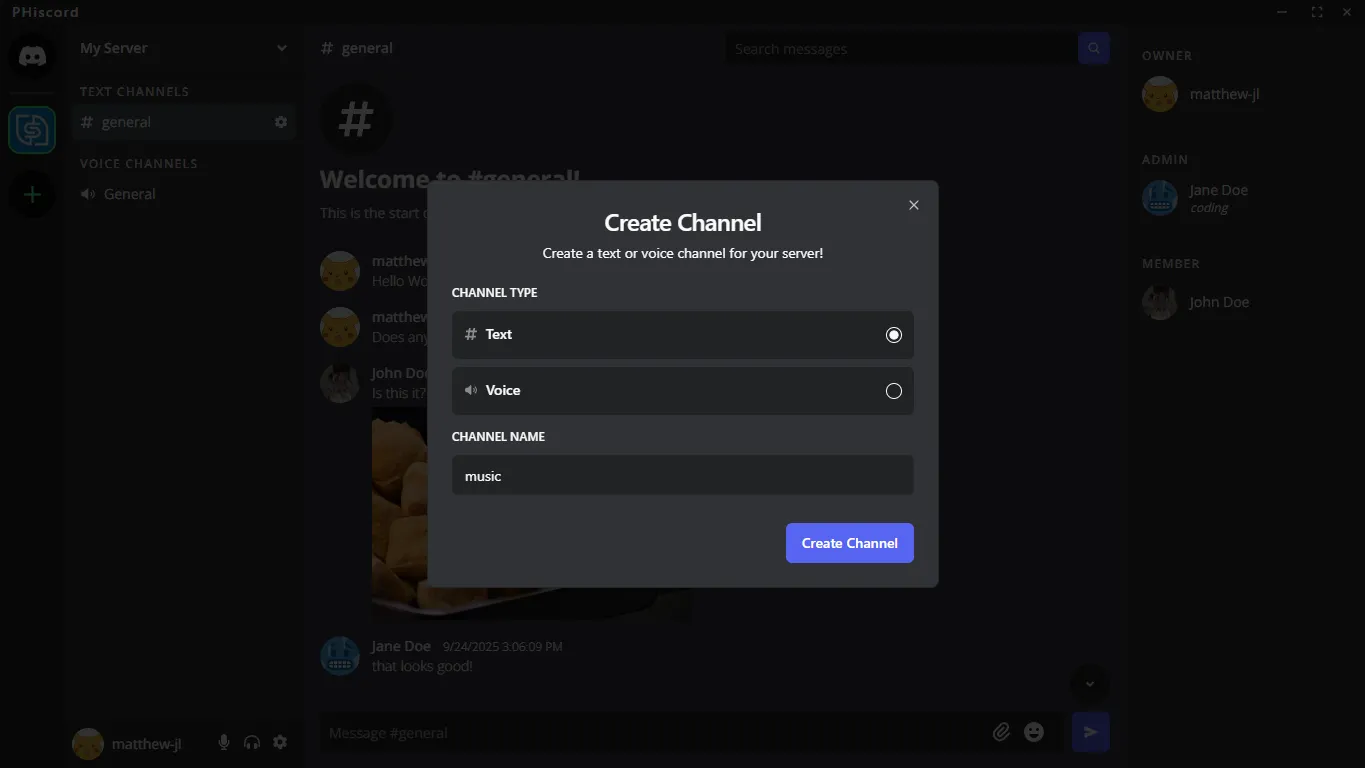

- Channel Management → Admins/Owners can create, edit, and delete text and voice channels.

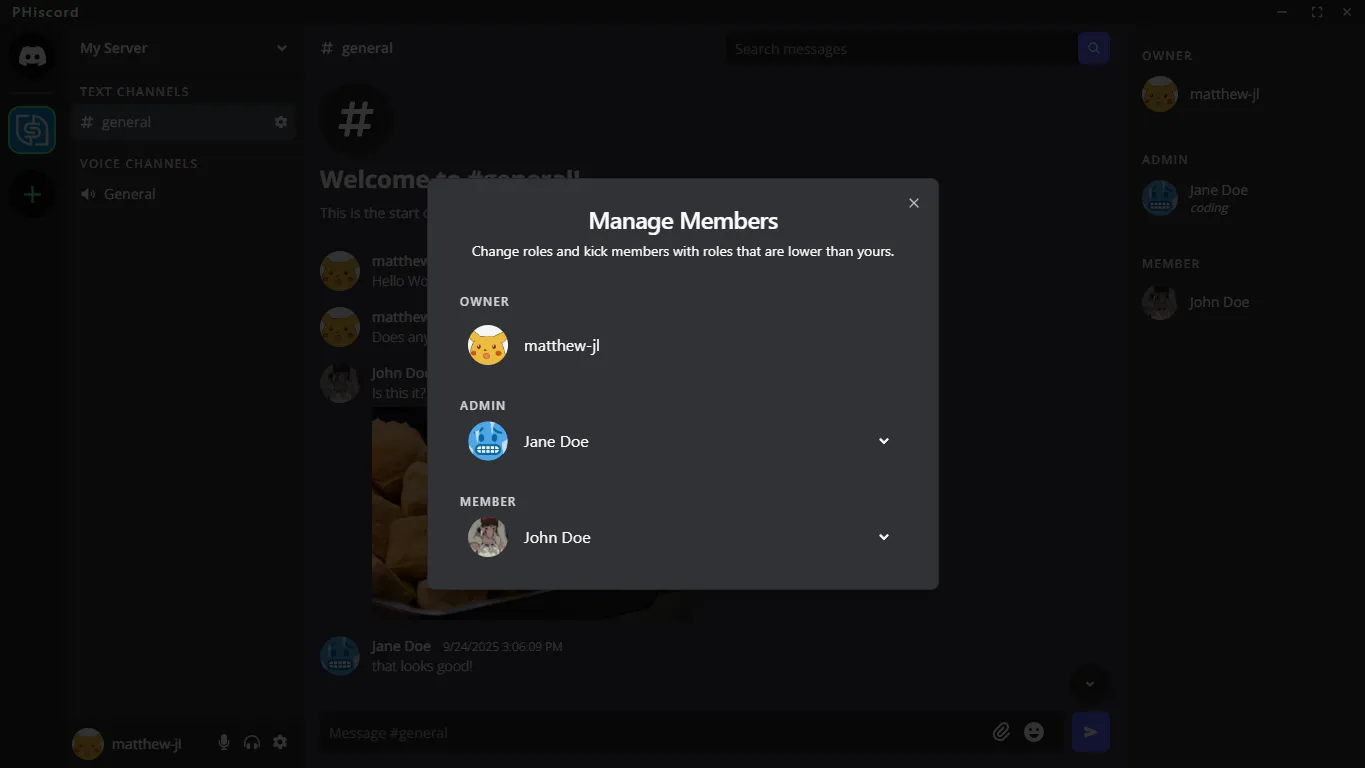

- Member Management → View server members categorized by role. Admins/Owners can manage members on their server.
System Design & Architecture
Here are the outputs of the system design phase that was done before the programming phase.

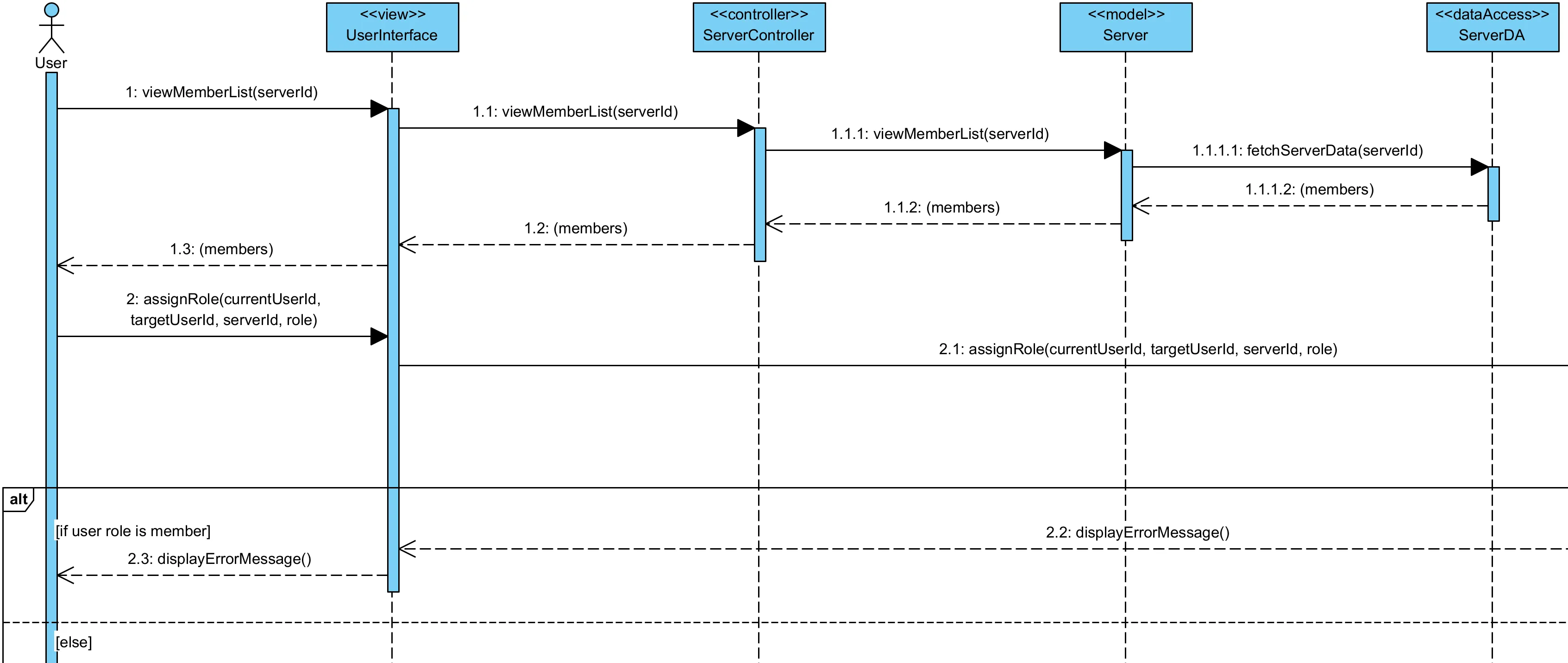

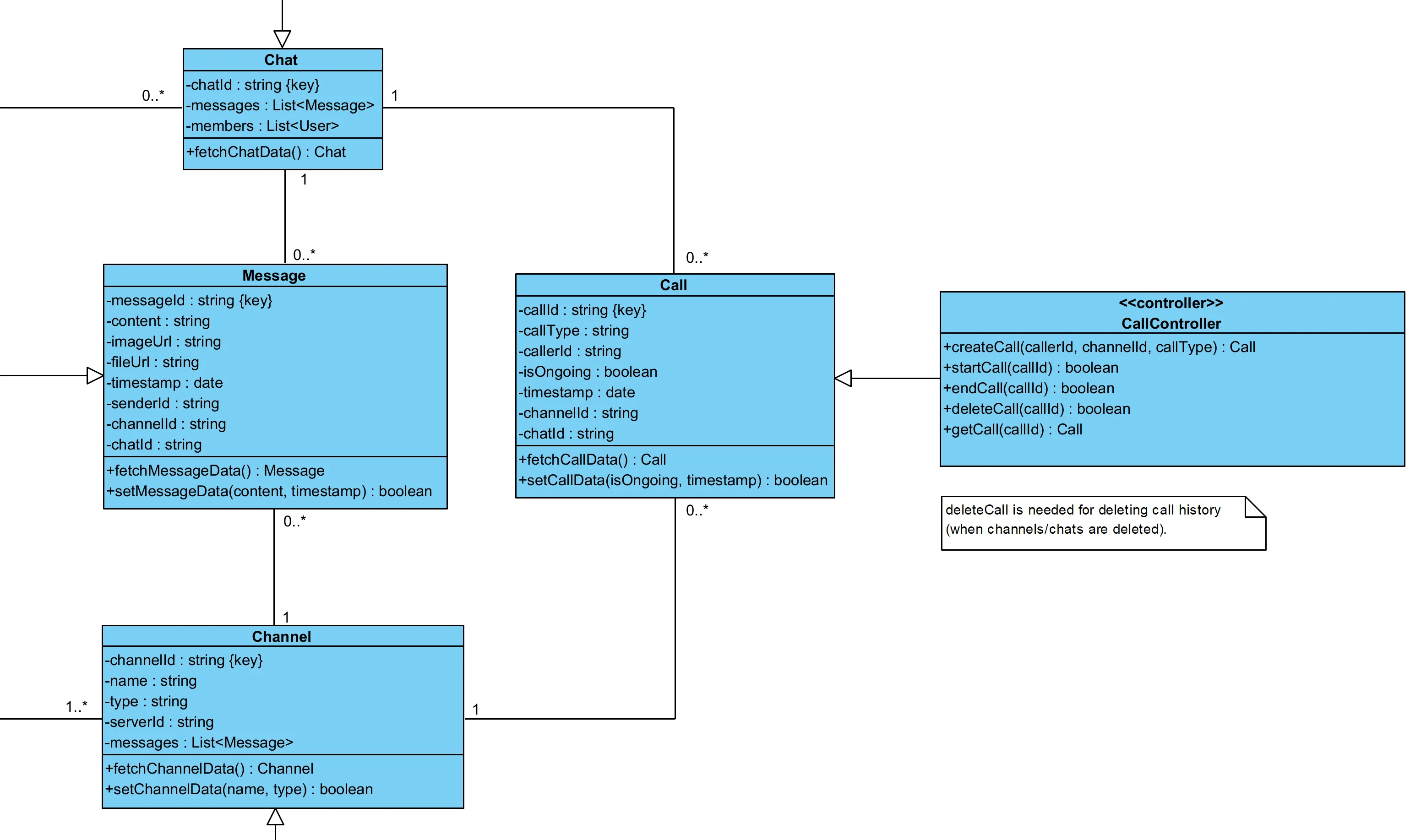

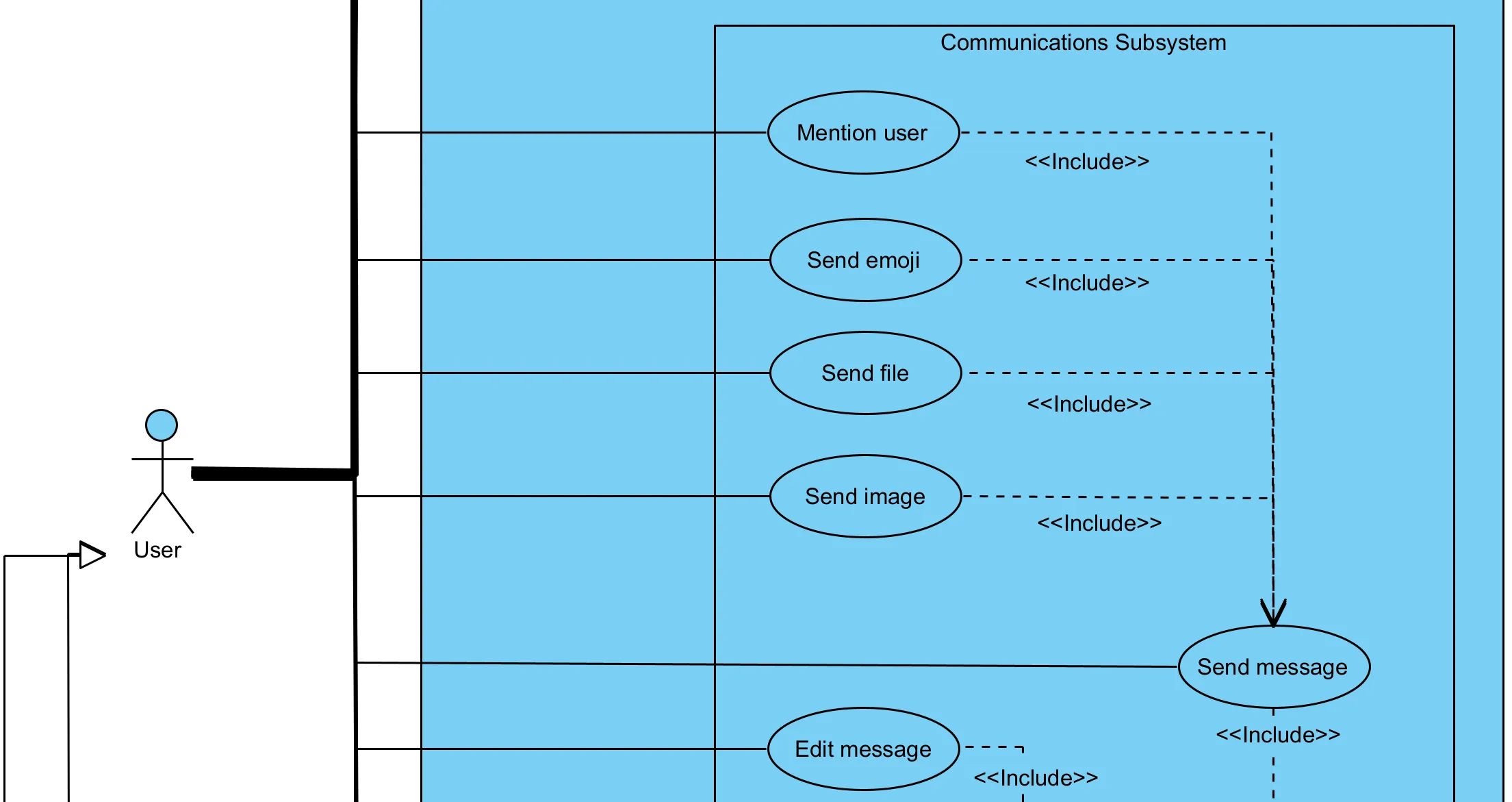

- System Design Diagrams → Detailed diagrams illustrating the system’s architecture and user flows were created using the Satzinger concept during the planning phase. These can be found here:
- Database Schema → The application utilizes Firestore as its primary database. The detailed schema outlining collections, documents, and fields can be found here:
